Armyjet 60cm UV DTF printer, i3200/i1600, Hoson, long-time stable printing, AJ-6004iUV
Product Features:

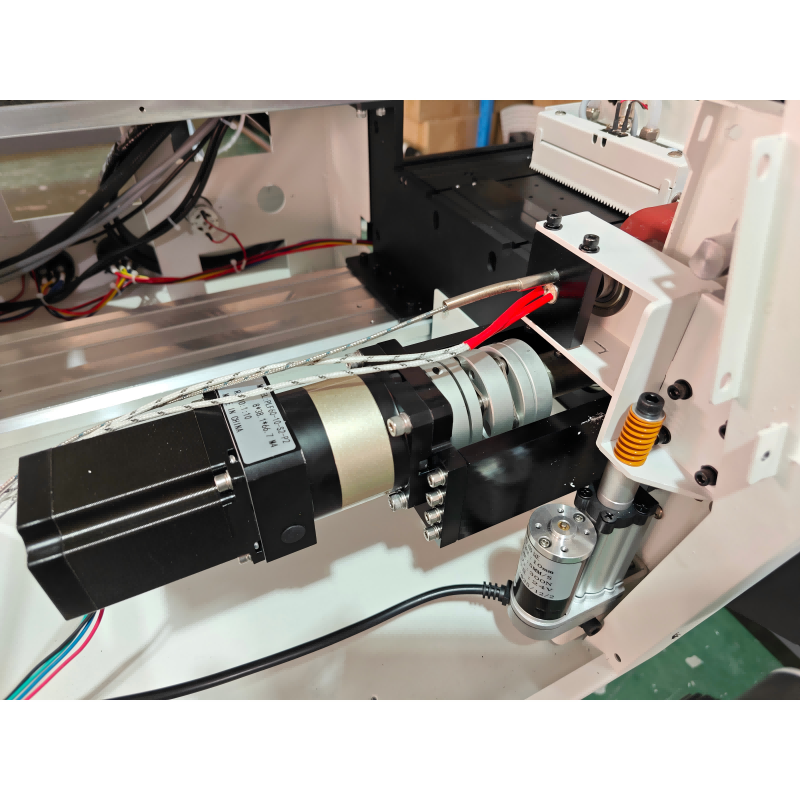

1. New: The electric cylinder offers consistent pressure for the A-B film bonding
2. Support 3~4 pcs printheads, support Epson i3200/i1600 head

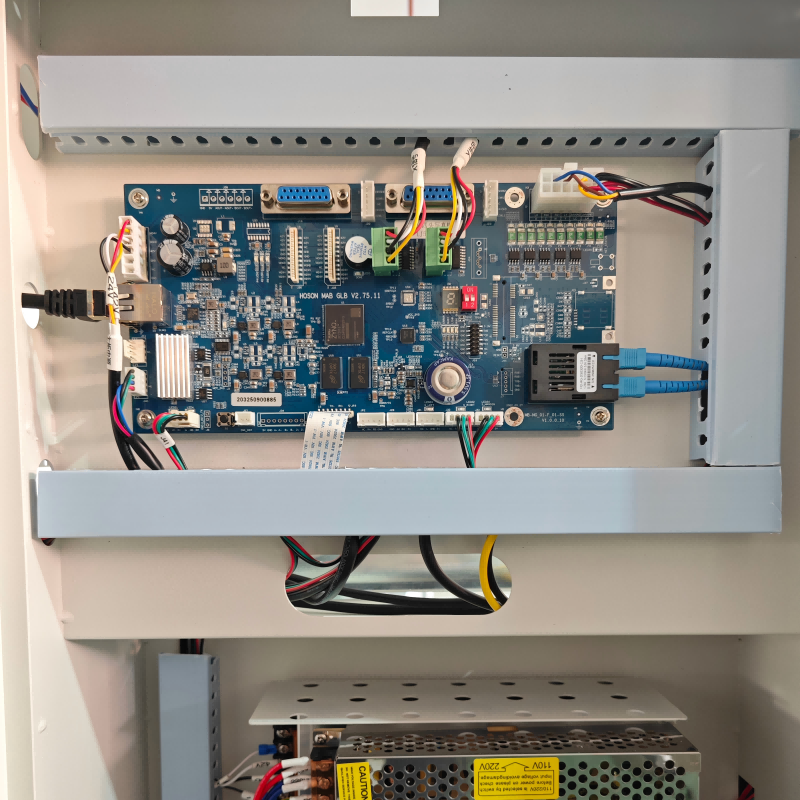

3. Hoson control system, more mature and stable
4. White ink circulation system and Anti-crush system to protect the printheads.
5. UV Bulk ink supply system with intelligent alarming
6. More Accurate motion system and best take-up system
Specifications of Armyjet 60cm UV DTF printer
|
UV DTF 水晶标 |
|||
| Model 机器型号 | AJ-6004iUV | ||
| Control System 控制系统 | Hoson 汉森板卡 | ||
| Print Head 喷头 | Epson i3200 4 heads(1White + 1CMYK +1V) | ||
| Head Type喷头类型 | Epson-i3200-U1 | ||
| Max Printing Width 最大打印宽幅 | 60CM | ||
| Printing Speed 打印速度 | 6 pass | 6 ㎡/h | |
| 8 pass | 4 ㎡/h | ||
| Ink 墨水 | Sort 种类 | UV ink UV墨水 | |
| Capacity 容量 | 1.5L ink cartridge 1.5升大墨瓶 | ||
| Media材料 | Sort 种类 | AB膜 | |
| Ink Supply System供墨系统 | Bulk supply + White mixing + White circulation连供供墨+白墨搅拌+白墨循环 | ||

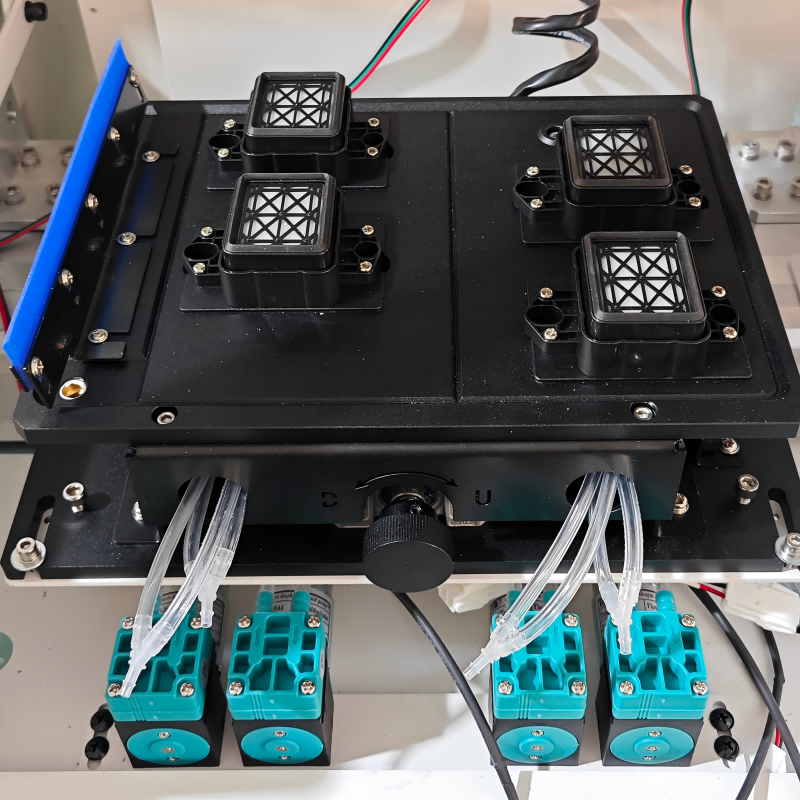

| Head Protection System 喷头防护系统 | Auto cleaning system自动清洗系统 | ||
| Media Take-up Device 收纸装置 | Single motor take-up system单电机收纸 | ||
| Voltage Specification 电压 | AC110V±10%.AC220V±10%.50/60HZ | ||
| Power功率 | 2000W | ||
| Interface 接口 | 1000M LAN Ethernet Network Cable
千兆网接口 |
||
| RIP Software RIP 软件 | Photoprint/ Maintop | ||
| Color Control 颜色控制 | Meeting the ICC standard, with the function of ink curve density adjustment
定制曲线，颜色更艳丽 |
||
| Working Environment 工作环境 | Temperature：20℃-35℃
Humidity：35%RH-65%RH |
||
| Net Weight/Gross Weight 净重/毛重 | 280 KGS/337 KGS | ||
| Printer Size 机器尺寸 | 1.77*1.00*1.61M | ||
| Packing Size 打包尺寸 | 2.10*1.15*0.82M=1.98CBM | ||
