1.9m,4pcs i3200 heads,Sublimation Printer,Accurate take-up system,1000m paper, AJ-1904iS

Short Description:

Industrial level control system,
Accurate take-up system,

Support 1000m paper printing,

Product Detail

Product Tags

Pass No.	Speed
2 pass	120 ㎡/h
3 pass	80 ㎡/h
4 pass	63 ㎡/h
6 pass	43 ㎡/h

Product Features:

1. Industrial level control system, higher printing speed. Printing speed (printing width: 1.9M )

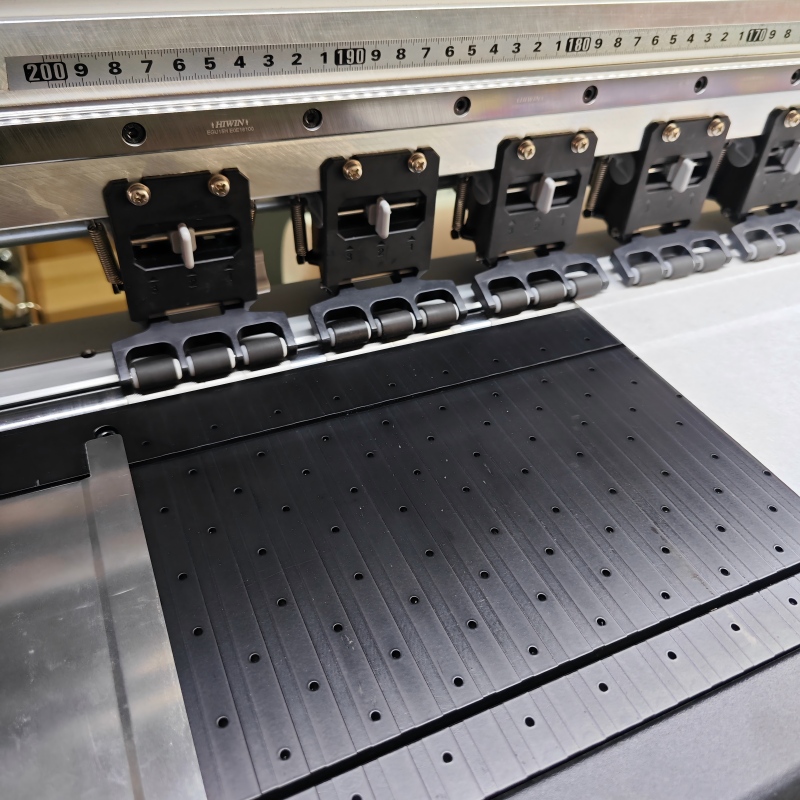

2. All aluminum structures, and a higher precision printing platform, ensuring high-speed printing without paper wrinkled

3. Printing platform is controlled within 0.03mm

4. Automatic up & down printhead maintenance system

5. Equipped with the advanced anti-crash system to protect printhead from scratching paper

6. Media-end detector: printer will stop printing immediately once the media run out

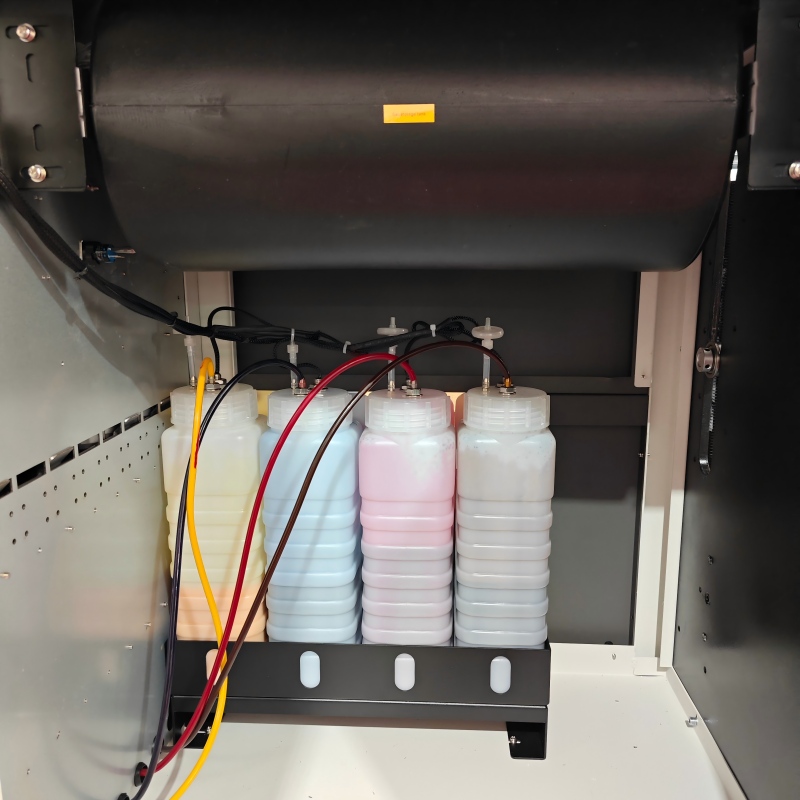

7. Bigger bulk ink supply system with ink shortage alarming system, saving time to add the ink

8. Equipped with foot cups to level the printer to adapt to different working environments

9. Intelligent IR heater, heating while printing, ending while idle to save the power cost

Technical Specifications

*Sublimation Printer 热转印机*
Model 机器型号		AJ-1904iS
Control System 控制系统		Hoson 汉森板卡/BYHX 北京板卡
Print Head 喷头		Epson i3200 4 heads
Head Type喷头类型		Epson-i3200-A1
Max Printing Width 最大打印宽幅		1900mm
Printing Speed 打印速度		2 pass	110 ㎡/h
		3 pass	74 ㎡/h
		4 pass	60 ㎡/h
Ink 墨水	Sort 种类	Sublimation ink/water-based ink 热转印墨水/水性墨水
	Capacity 容量	1.5L ink cartridge 1.5升大墨瓶
Media材料	Sort 种类	Sublimation paper 热转印纸
	Minimum Supported Grammage最小支持克重	29g
	Maximum Roll Weight最大支持重量	40kg, 100kg(Plus)
Ink Supply System供墨系统		Large Continuous ink supply 连供供墨系统
Head Protection System 喷头防护系统		Auto cleaning system自动清洗系统

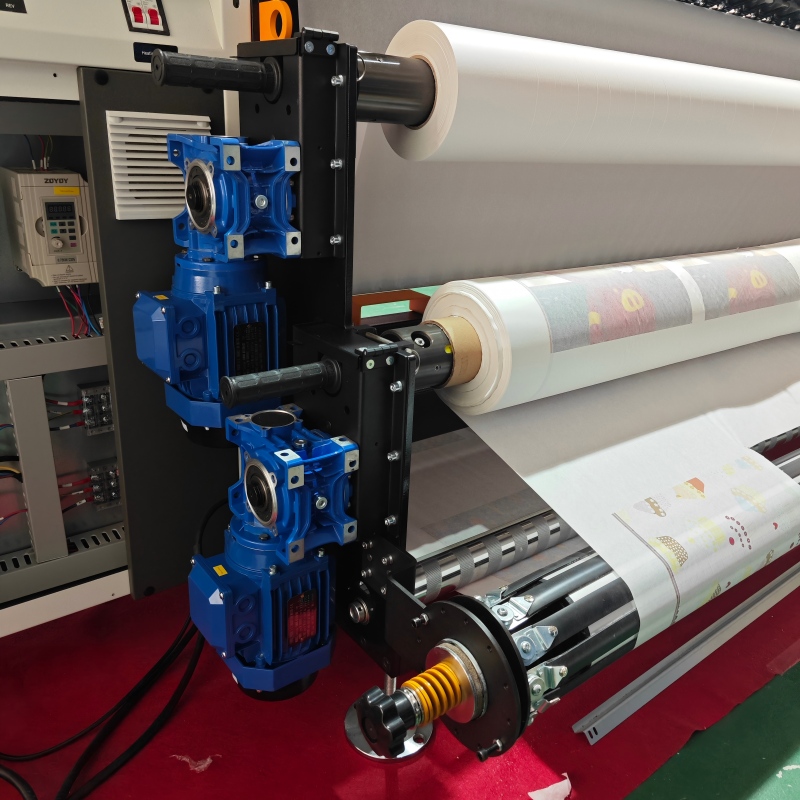

Media Take-up Device 收纸装置		Double motor take-up system双电机收纸
Voltage Specification 电压		AC110V±10%.AC220V±10%.50/60HZ
Power功率	Machine Power 机器功率	800W
	Dryer Power 烘干器功率	6KW
Interface 接口		1000M LAN Ethernet Network Cable千兆网接口
RIP Software RIP 软件		Photoprint/ Maintop
Color Control 颜色控制		Meeting the ICC standard, with the function of ink curve density adjustment. 定制曲线，颜色更艳丽
Working Environment 工作环境		Temperature: 20℃-35℃，Humidity: 35%RH-65%RH
Net Weight/Gross Weight 净重/毛重		400 KGS/460KGS; 600KGS/660KGS (Plus)
Printer Size 机器尺寸		3.010.921.83M
Packing Size 打包尺寸		3.100.940.75M=2.19CBM

Technical Specifications

Item Model		AJ-1903iS
Print Head		Epson i3200 Printhead, 400 nozzles8Lines3 heads
Printing Width		1900mm
Printing Speed		2pass	120m²/h
		3pass	80m²/h
		4pass	63m²/h
INK	Sort	Sublimation ink or water-based ink
	Capacity	1.5L/Bottle
MEDIA	Width	1900mm
	Sort	Sublimation paper
Media Heater		Intelligent IR Heater
Media Take-up Device		40R strong double taking up motors
Interface		USB 2.0
RIP Software		PhotoprintV19.0/Maintop 6.0
Operation Environments		Temperature: 20℃-35℃，Humidity: 35%RH-65%RH
Packaging (LWH)		L 3220W 860H 1730 mm
Net Weight / Gross Weight		460 KGS/400 KGS
