60cm DTF printer,No.2 DTF Printer supplier in China, AJ-6002iT,BYHX/Hoson
|
DTF 烫画机 |
|||
| Model 机器型号 | AJ-6002iT | ||
| Control system 控制系统 | Hoson 汉森板卡/BYHX 北京板卡 | ||
| Print Head 喷头 | Epson i3200 2 heads(1 White + 1 CMYK) | ||
| Head Type喷头类型 | Epson-i3200-A1 | ||
| Max Printing Width 最大打印宽幅 | 60CM | ||
| Printing Speed 打印速度 | 4 pass | 9 ㎡/h | |
| 6 pass | 7 ㎡/h | ||
| 8 pass | 5 ㎡/h | ||
| Ink墨水 | Sort 种类 | Pigment ink/Water-based ink颜料墨水/水性墨水 | |
| Capacity 容量 | 1.5L ink cartridge 1.5升大墨瓶 | ||
| Media材料 | Sort 种类 | PET Film (Heat transfer film)PET 膜 | |
| Media Heater 平台加热 | Pre/Rear Heater (can be controlled separately)前后两段加热 | ||
| Ink Supply System供墨系统 | Bulk supply + White mixing + White circulation连供供墨+白墨搅拌+白墨循环 | ||
| Head Protection System 喷头防护系统 | Auto cleaning system自动清洗系统 | ||
| Media Take-up Device 收纸装置 | Single motor take-up system单电机收纸 | ||
| Voltage Specification 电压 | AC110V±10%.AC220V±10%.50/60HZ | ||
| Power功率 | 600W | ||
| Interface 接口 | 1000M LAN Ethernet Network Cable千兆网接口/USB 3.0 | ||
| RIP Software RIP软件 | Photoprint/ Maintop | ||
| Color Control 颜色控制 | Meeting the ICC standard, with the function of ink curve density adjustment. 定制曲线，颜色更艳丽 | ||
| Working Environment 工作环境 | Temperature：20℃-35℃，Humidity：35%RH-65%RH | ||
| Gross Weight 毛重 | 235 KGS | ||
| Printer Size 机器尺寸 | 1.76* 0.94*1.55M | ||
| Packing Size 打包尺寸 | 1.87*0.73*0.87M=1.19CBM | ||
|
Powder Shaker 抖粉机 |
|||
|
Rated Voltage 额定电压 |
220V | ||
|
Rated Current 额定电流 |
20A | ||
|
Rated Power 额定功率 |
4.5KW | ||
|
Drying Temperature烘干温度 |
140~150℃ | ||
|
Drying Speed干燥速度 |
Adjustable according to printing speed | ||
|
Gross Weight毛重 |
300 KGS | ||
|
Machine Size 机器尺寸 |
0.67*0.95*1.06M | ||
|
Packing Size打包尺寸 |
0.92*0.73*1.17M=0.79CBM | ||
| Note: Armyjet offers many other types of shakers like shakers with conveyors. | |||
Product Features:
1. Three sections independent heating systems completely solve the problem of oil return after printing
Heating quality:
2. Double motor take ups ensure the stable film collecting
3. Installing Epson i3200-A1 printhead, higher speed, longer printing life
4. Anti-crashed system equipped to protect the printhead from damaging
5. Media lacking system ensures printer stop printing while media runs out
5. Independent white ink circulation system avoids blocking

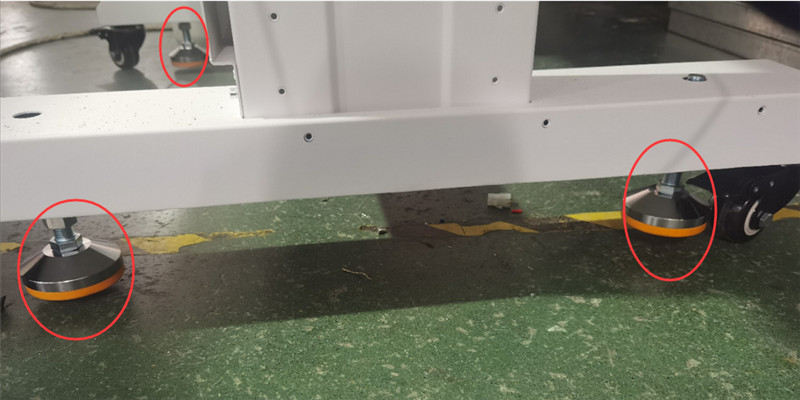

6. The whole machine is fixed with foot cups to ensure high-speed printing without shaking

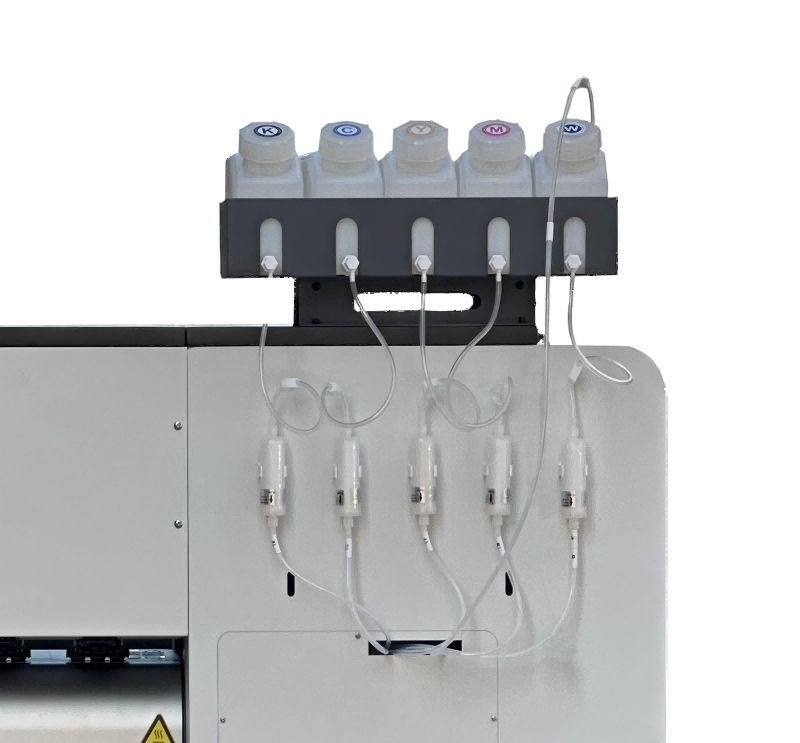

7. Bulk ink system with ink shortage warning, user friendly
