No.2 DTF Printer supplier in China, 60CM, AJ-6002iT,classic DTF printer, BYHX/Hoson
|
Printer Part |
|||
| Model | AJ-6002iT | ||
| Print Head | Epson i3200 2 heads (1 White + 1 CMYK)/i1600(New) | ||
| Printing Width | 60cm | ||
| Printing Speed | 4 pass | 13 ㎡/h | |
| 6 pass | 10 ㎡/h | ||
| 8 pass | 7 ㎡/h | ||
| Ink | Sort | Pigment Ink | |
| Capacity | (Double) 4 Colors, 440ml/each | ||
| Media | Width | 60CM | |
| Sort | PET Film ( Heat transfer film) | ||
| Media Heater | Pre/Print/Post Heater (can be controlled separately) | ||
| Media Take-up Device | Motor take-up system | ||
| Printing Interface | USB / Ethernet | ||
| RIP Software | Photoprint(Flexi)/ Maintop UV Mini | ||
| Printer Gross Weight | 235 KGS | ||
| Printer Size | L1750* W820*H1480MM | ||
| Printer Packing Size | L1870*W730*H870 MM=1.19CBM | ||
|
Vertical Powder Shaker L60 |
|||
| Nominal Voltage | 220V | ||
| Rated Current | 20A | ||
| Rated Power | 4.5KW | ||
| Drying Temperature | 140~150℃ | ||
| Drying Speed | Adjustable according to printing speed | ||
| Gross Weight | 300 KGS | ||
| Machine Size | L66.8*W94.5*105.5CM | ||
| Machine Packing Size | L92*W73*1170CM=0.79CBM | ||
Note: Armyjet offers many other types of shakers like shakers with conveyors.
Product Features:
1. Powder shaker is smaller size, saving 70% ocean freight
20ft container can load 12 sets, while 40ft container load 30 sets (printer+powder shaker), while the old design is 4 sets for 20ft container and 8 sets for 40ft container!!!
2. Automatic powder recycling system, no need to add powder all the time
3. Equipped with 2 guiding axes, ensuring film running more steady without wrinkle
4. Three sections independent heating systems completely solve the problem of oil return after printing
Heating quality:
5. Double motor take ups ensure the stable film collecting
6. Installing Epson i3200-A1 printhead, higher speed, longer printing life

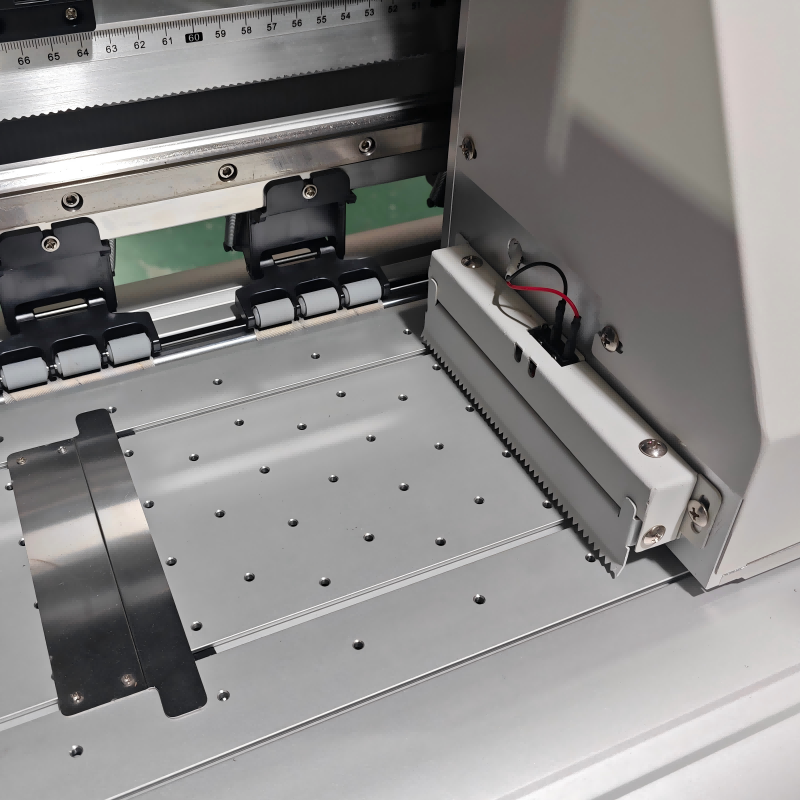

7. Anti-crashed system equipped to protect the printhead from damaging
8. Media lacking system ensures printer stop printing while media runs out
9. Independent white ink circulation system avoids blocking

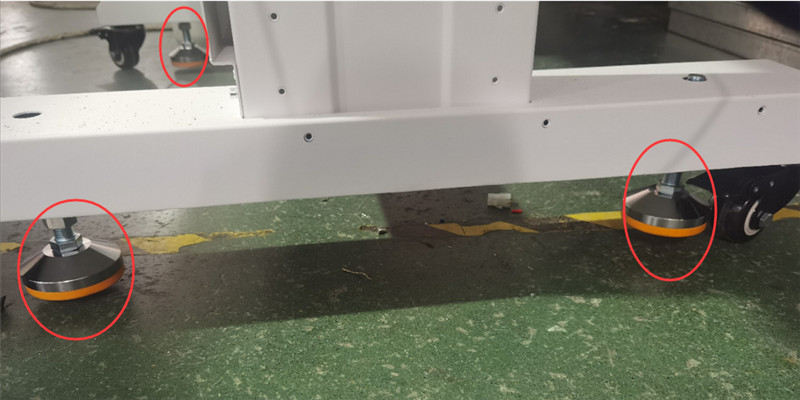

11. The whole machine is fixed with foot cups to ensure high-speed printing without shaking

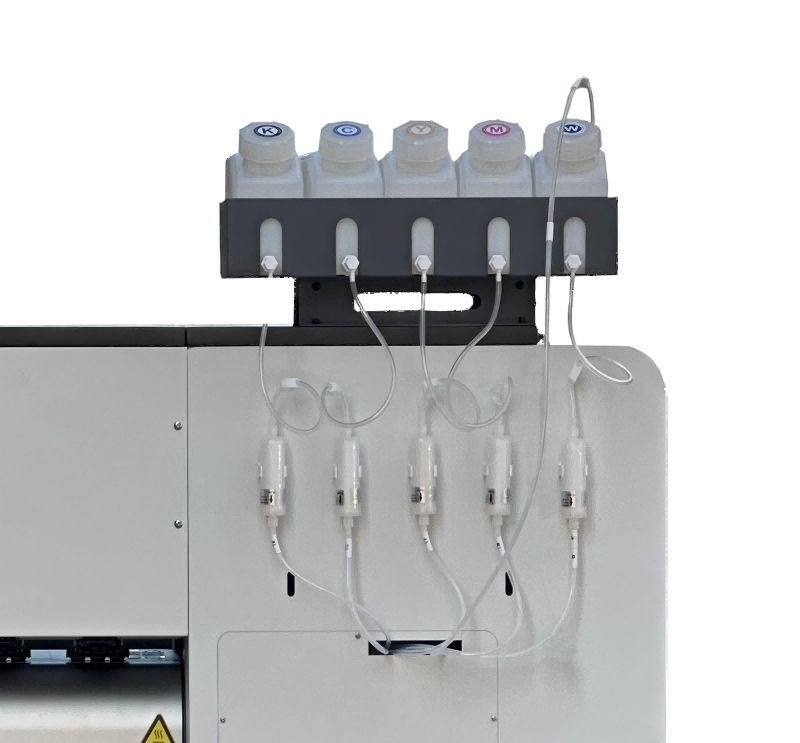

10. Bulk ink system with ink shortage warning, user friendly
