A3 DTF printer,New i1600,Xp600/i3200, AJ-3002iT
|
DTF 烫画机 |
|||
| Model 机器型号 | AJ-3002i16T | ||
| Control system 控制系统 | BYHX 北京板卡 | ||
| Print Head 喷头 | Epson i1600 2 heads(1 White + 1 CMYK) | ||
| Head Type喷头类型 | Epson-i1600-A1 | ||
| Max Printing Width 最大打印宽幅 | 30CM | ||
| Printing Speed 打印速度 | 4 pass | 5 ㎡/h | |
| 6 pass | 4 ㎡/h | ||
| 8 pass | 3 ㎡/h | ||
| Ink 墨水 | Sort 类型 | Pigment ink/Water-based ink颜料墨水/水性墨水 | |
| Capacity 容量 | 500ML ink cartridge 500毫升墨瓶 | ||
| Media材料 | Type 种类 | PET Film (Heat transfer film)PET 膜 | |
| Media Heater 平台加热 | Pre/Rear Heater (can be controlled separately)前后两段加热 | ||
| Ink Supply System供墨系统 | Bulk supply + White mixing + White circulation连供供墨+白墨搅拌+白墨循环 | ||
| Head Protection System 喷头防护系统 | Auto cleaning system自动清洗系统 | ||
| Media Take-up Device 收纸装置 | Single motor take-up system单电机收纸 | ||
| Voltage Specification 电压 | AC110V±10%.AC220V±10%.50/60HZ | ||
| Power功率 | 450W | ||
| Interface 接口 | 1000M LAN Ethernet Network Cable千兆网接口 | ||
| RIP Software RIP软件 | Photoprint/ Maintop | ||
| Color Control 颜色控制 | Meeting the ICC standard, with the function of ink curve density adjustment. 定制曲线，颜色更艳丽 | ||
| Working Environment 工作环境 | Temperature：20℃-35℃，Humidity：35%RH-65%RH | ||
| Net Weight/Gross Weight 净重/毛重 | 90 KGS/120 KGS | ||
| Printer Size机器尺寸 | 1.07×0.75×1.20M | ||
| Packing Size打包尺寸 | 1.17×0.61×0.81M=0.44CBM | ||
|
Powder Shaker 抖粉机 |
|||
| Rated Voltage 额定电压 | 220V | ||
| Rated Current额定电流 | 20A | ||
| Rated Power额定功率 | 3.4KW | ||
| Drying Temperature烘干温度 | 100~110℃ | ||
|
Drying Speed干燥速度 |
Adjustable according to printing speed | ||
| Gross Weight毛重 | 55 KGS | ||
| Machine Size 机器尺寸 | 0.90*0.55*0.50M | ||
| Packing Size 打包尺寸 | 0.95*0.70*0.72M=0.48CBM | ||
Product Features:
1. Support Epson XP600/i3200/i1600, higher speed, longer printing life

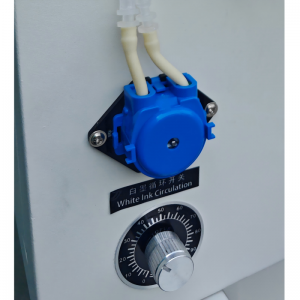

2. White ink mixing & circulation system avoids blocking

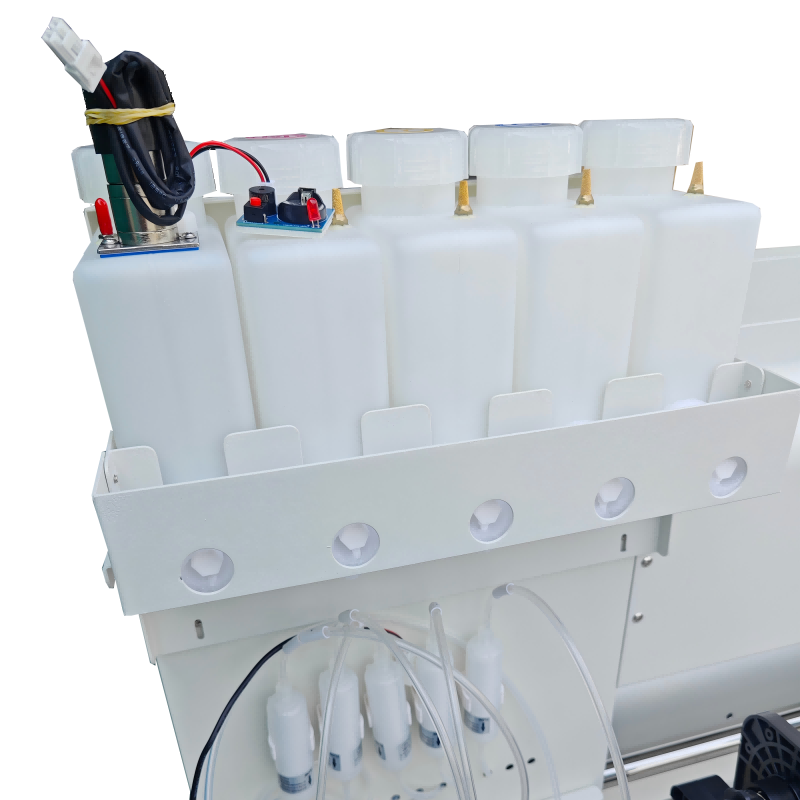

3. Bulk ink system with ink shortage warning, user friendly
4. User-friendly designs, easy to use
