AJ-6040iUV, 60*40cm, 3pcs i3200/XP600/i1600, UV faltbed & roll to roll printer optional

Epson i3200/i1600/Xp600 heads, Hoson/Wellprint board, best selling 6040 UV Flatbed Printer

No. 2 Best small UV flatbed printer supplier in China. Good market reputation

Long-time stable printing

Product Detail

1.Integrate flatbed & roll to roll platform and negative optional

2.Supports printing on both flat and cylindrical surfaces, perfect for customization and personalization

3.Max print height 16cm,ideal for printing on thick substrates like wooden boards, acrylic sheets and 3D objects

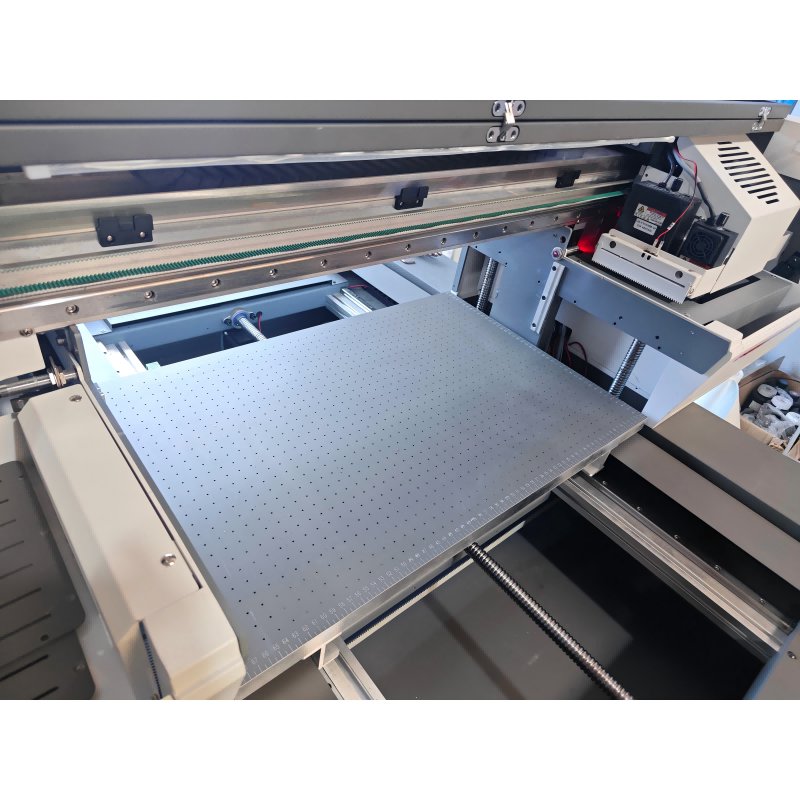

4.Vacuum suction platform, firmly adsorbs various materials

5.Automatic height measurement avoid head damage

6.Ink shortage alarming system, white ink mixing system, smooth printing

UV Flatbed Printer UV平板机
Model 机器型号		AJ-6040iUV
Control System 控制系统		Hoson 汉森板卡/BYHX 北京板卡
Print Head 喷头		Epson i3200/i1600/XP600
Head Type喷头类型		Epson-i3200-U1/Epson-i1600-U1/XP600
Max Printing Area 最大打印面积		60*40 CM
Printing Speed 打印速度		4 pass	5 ㎡/h
		6 pass	4 ㎡/h
		8 pass	2.5 ㎡/h
Ink 墨水	Sort 种类	UV ink UV墨水
	Capacity 容量	1L ink cartridge 1升墨瓶
Media材料	Sort 种类	Acrylic,PVC sheet,Wood Board,Metal Plate,Glass,Ceramic Tile,etc.亚克力、PVC板、木板、金属板、玻璃、瓷砖等

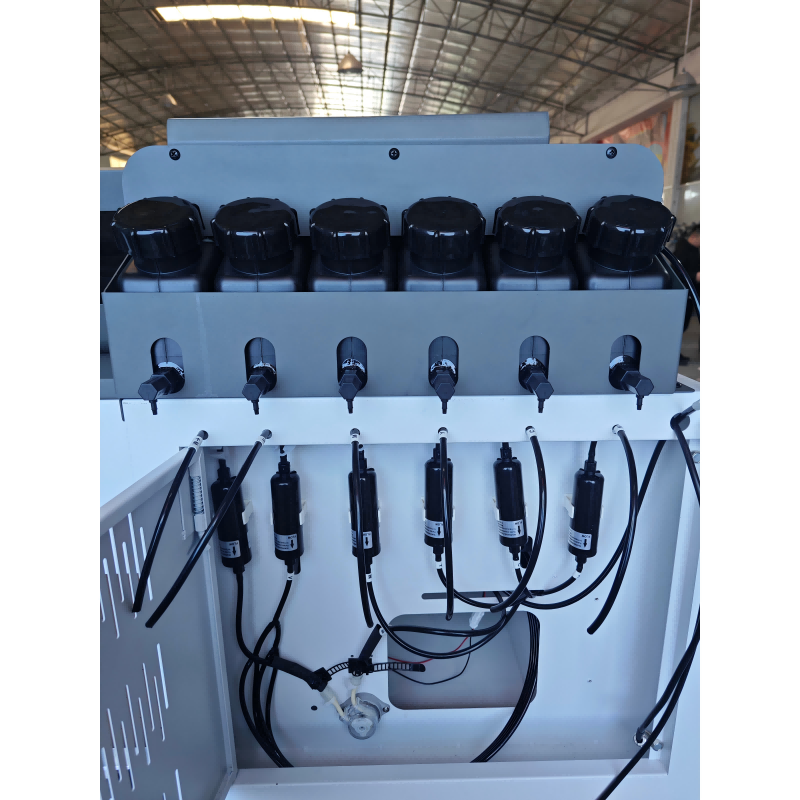

Ink Supply System供墨系统		Bulk supply + White mixing + White circulation连供供墨+白墨搅拌+白墨循环
Head Protection System 喷头防护系统		Auto cleaning system自动清洗系统
Voltage Specification 电压		AC110V±10%.AC220V±10%.50/60HZ
Power功率		1000W
Interface 接口		1000M LAN Ethernet Network Cable 千兆网接口/USB 3.0
RIP Software RIP软件		Photoprint/ Maintop
Color Control 颜色控制		Meeting the ICC standard, with the function of ink curve density adjustment 定制曲线，颜色更艳丽
Working Environment 工作环境		Temperature：20℃-35℃ Humidity：35%RH-65%RH
Net Weight/Gross Weight 净重/毛重		330 KGS/380 KGS
Packing Size 打包尺寸		1.901.571.01M=3.01CBM
