Armyjet 9060 UV flatbed printer, 3pcs i3200, long-time stable printing,AJ-9060iUV, Negative

Epson i3200-U1/Xp600 heads, Hoson board, best selling 9060 UV Flatbed Printer

No. 2 Best small UV flatbed printer supplier in China. Good market reputation

Long-time stable printing

Product Detail

1.Quite and high quality linear guide, longer service life

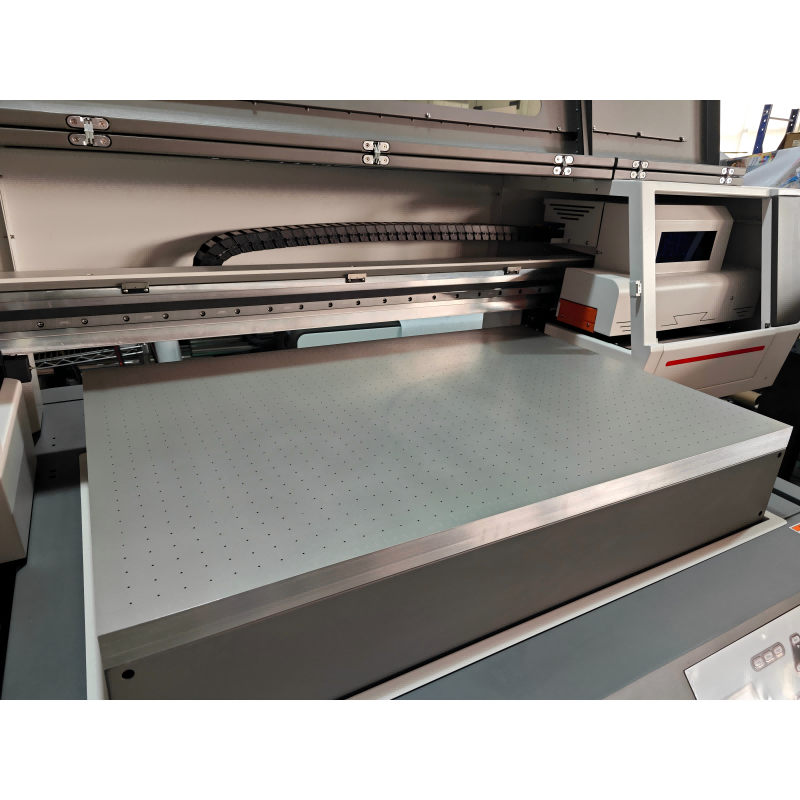

2.Vacuum suction platform, firmly adsorbs various materials

3.Supports printing on both flat and cylindrical surfaces, perfect for customization and personalization

4.Print height 28cm,ideal for printing on thick substrates like wooden boards, acrylic sheets and 3D objects

5.Automatic height measurement avoid head damage

6.Ink shortage alarming system, white ink mixing system, smooth printing

UV Flatbed Printer UV平板机
Model 机器型号		AJ-9060iUV

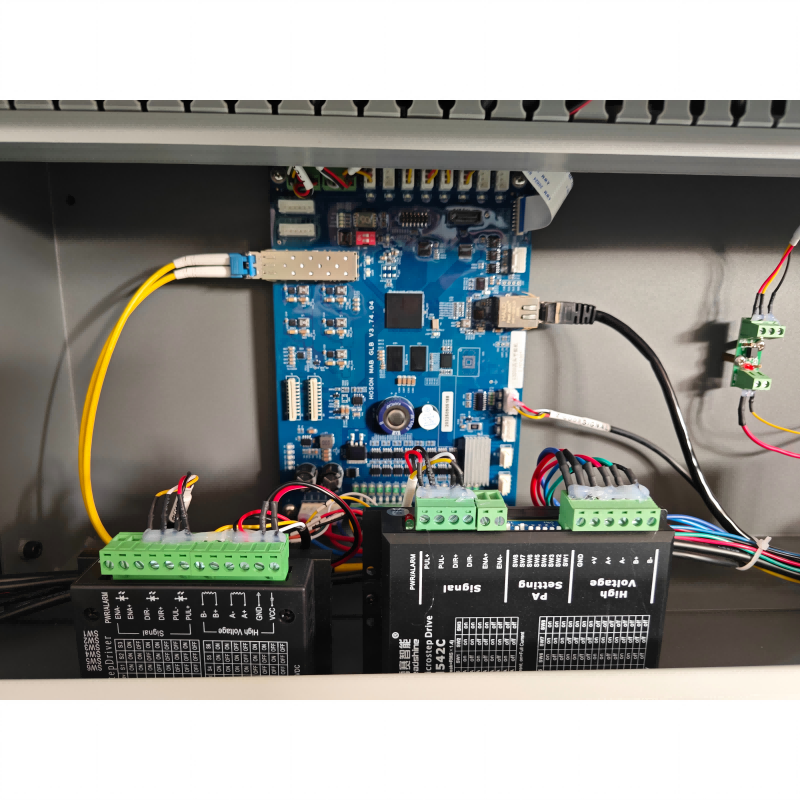

Control System 控制系统		Hoson 汉森板卡/BYHX 北京板卡
Print Head 喷头		Epson i3200/i1600/XP600
Head Type喷头类型		Epson-i3200-U1/Epson-i1600-U1/XP600
Max Printing Area 最大打印面积		90*60 CM
Printing Speed 打印速度		4 pass	7 ㎡/h
		6 pass	5 ㎡/h
		8 pass	3.5 ㎡/h
Ink 墨水	Sort 种类	UV ink UV墨水
	Capacity 容量	1.5L ink cartridge 1.5升大墨瓶
Media材料	Sort 种类	Acrylic,PVC sheet,Wood Board,Metal Plate,Glass,Ceramic Tile,etc.亚克力、PVC板、木板、金属板、玻璃、瓷砖等
Ink Supply System供墨系统		Bulk supply + White mixing + White circulation连供供墨+白墨搅拌+白墨循环
Head Protection System 喷头防护系统		Auto cleaning system自动清洗系统
Voltage Specification 电压		AC110V±10%.AC220V±10%.50/60HZ
Power功率		2000W
Interface 接口		1000M LAN Ethernet Network Cable千兆网接口/USB 3.0
RIP Software RIP软件		Photoprint/ Maintop
Color Control 颜色控制		Meeting the ICC standard, with the function of ink curve density adjustment定制曲线，颜色更艳丽
Working Environment 工作环境		Temperature：20℃-35℃，Humidity：35%RH-65%RH
Net Weight/Gross Weight 净重/毛重		355 KGS/455 KGS
Printer Size 机器尺寸		2.161.321.44M
Packing Size 打包尺寸		2.251.351.24M=3.77CBM
